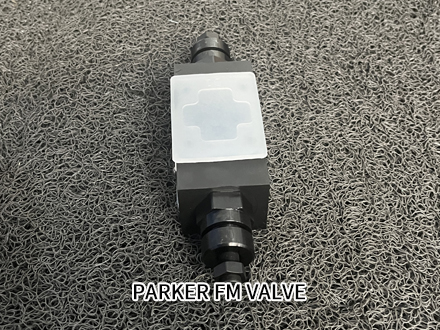

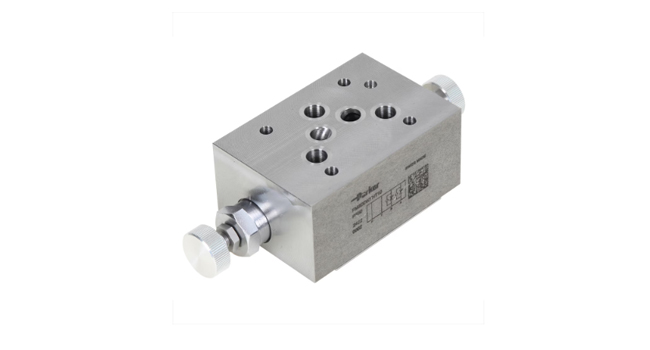

Parker FM3DDSV Single Throttle Valve

Parker FM3DDSV Single Direction Throttle Valve / Double Single Throttle Valve is a component of Parker‘s comprehensive range of stack valves and can be easily configured into traditional stack valve systems.

Quick Quote：13817145531

*已有【】人联系

Detail

Parker FM3DDSV Single Direction Throttle Valve / Double Single Throttle Valve is a component of Parker's comprehensive range of stack valves and can be easily configured into traditional stack valve systems. The throttle valve and check valve are located at ports A and B.

Markets:

Industrial

Machine Tools

Advantages/Features:

Stable operation in traditional stack valve systems.

Two throttle design types with needle plugs are available when ordering FM2 and FM3 size valves — to achieve the required throttling characteristic for the application.

Oversized bypass check valve — allows high flow rates with low pressure drop.

4 Sizes:

NG06 (CETOP 03 / NFPA D03)

NG10 (CETOP 05 / NFPA D05)

NG16 (CETOP 07 / NFPA D07)

NG25 (CETOP 08 / NFPA D08)

Applications:

Suitable for general hydraulic applications.

Machine Tools.

Function:

parker FM size valves can function as either meter-in control or meter-out control simply by changing the mounting orientation. For the FM4 size, the choice of meter-in or meter-out control can be specified in the order code, while the FM6 size is only available as meter-out control.
