DG4V-3-2BL-U-H-100

The Japan TOKYOKEIKI DG4V-3-2BL-U-H-100 miniature solenoid directional control valve is designed for use with non-petroleum-based hydraulic fluids and water-glycol hydraulic fluids.

Quick Quote：13817145531

*已有【】人联系

Detail

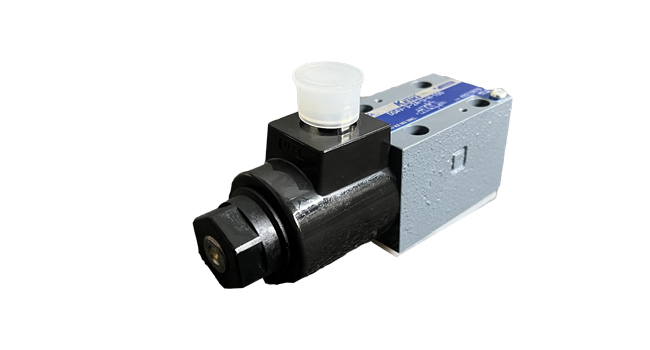

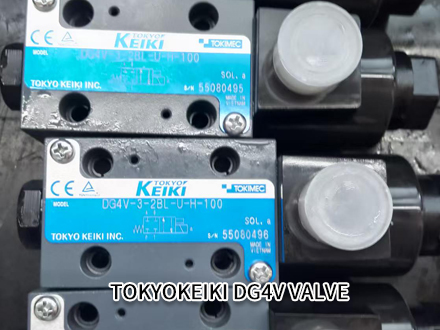

The Japan TOKYOKEIKI DG4V-3-2BL-U-H-100 miniature solenoid directional control valve is designed for use with non-petroleum-based hydraulic fluids and water-glycol hydraulic fluids. It is a subplate-mounted wet-armature solenoid TOKYOKEIKI valve with an ISO 4401-03 mounting surface configuration. It features a spring-offset Type B (2-position, single solenoid) design, with the solenoid mounting orientation opposite to the standard.

The TOKYOKEIKI DG4V solenoid valve spool type is center-closed. In the neutral position, the hydraulic pump remains in pressure-holding mode, and the actuator is locked. In the 2-position type, since all ports are fully closed during switching, pressure surges may occur—special caution is required.

As a wet-armature valve, it offers high durability and low switching noise. Additionally, since no seals are used in the sliding sections, there is no risk of oil leakage.

It supports three types of electrical wiring methods and provides a wide range of electrical options, including indicator lights, surge suppressors, and AC/DC rectifiers.
