HYDAC MS2A21/60/870/

HYDAC MS2A21/60/870/ Multi-station gauge isolators are designed to check different pressures in a hydraulic system. There are models with a built-in pressure gauge of HYDAC for different pressure ranges or models to which a separate pressure gauge can be connected.

Quick Quote：13817145531

*已有【】人联系

Detail

HYDAC MS2A21/60/870/ Multi-station gauge isolators are designed to check different pressures in a hydraulic system. There are models with a built-in pressure gauge of HYDAC for different pressure ranges or models to which a separate pressure gauge can be connected. If it is necessary for the system pressure to be retained during the measuring process, he leakage-free model must be used.

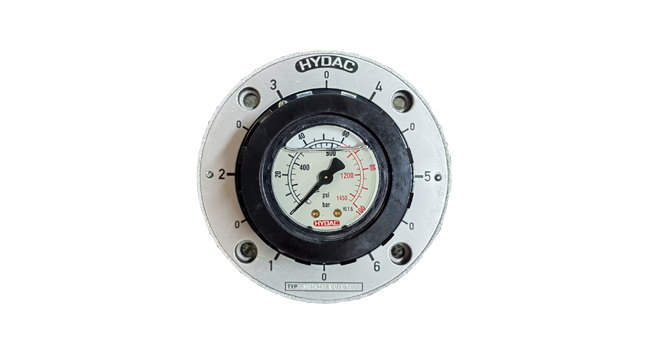

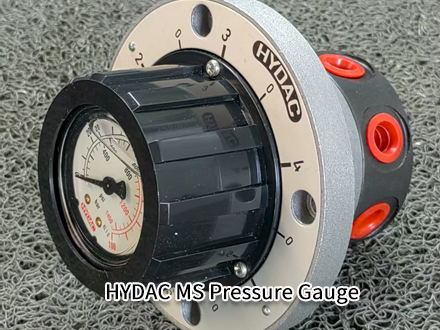

HYDAC MS Multi-station gauge isolators type ms 2 with built-in pressure gauge, are designed to check up to 6 different pressures in a hydraulic system. The gauge is built directly into the selector knob, therefore eliminating the need for a separate gauge. The pressure can be read when the arrow on the rotary knob is pointing to one of the six measuring

positions. By turning the knob each of the six measuring positions can be selected. Between each measuring position there is a zero position to relieve the gauge pressure. A built-in detent locks any selected position. Different gauges are available for different pressure ranges. The gauges are filled with a special damping fluid to prolong the gauge life.
