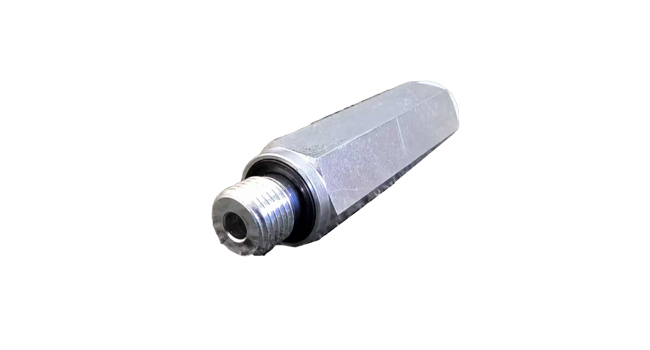

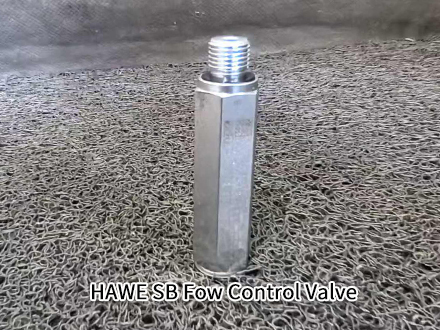

HAWE SB 05 F-3.0

HAWE SB 05 F-3.0 two-way flow control valve has an adjustable response flow range of 2.5-4 l/min. It features a pipeline-embedded housing structure, with HAWE a factory-set response flow of 3 l/min.

Quick Quote：13817145531

*已有【】人联系

Detail

HAWE SB 05 F-3.0 two-way flow control valve has an adjustable response flow range of 2.5-4 l/min. It features a pipeline-embedded housing structure, with HAWE a factory-set response flow of 3 l/min.

The working flow direction of the German HAWE SB 05 F-3.0 flow control valve is F<-B. It is used in weight-loaded lifting mechanisms to suppress vibrations, and its characteristic curve is slightly inclined in the load direction. The flow value remains largely constant, determined by the balance between the internally adjusted pressure drop and the spring preload force of the control spool.
