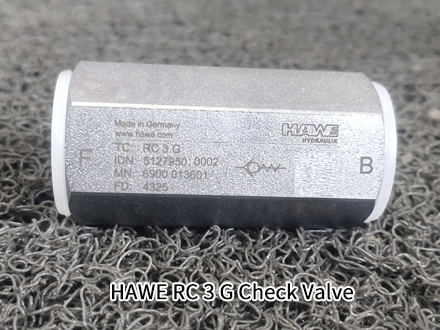

HAWE RC 3 G Check Valve

HAWE RC 3 G Cartridge Valve Check Valve, with both ends in tube connection type, features a maximum pressure of 500 bar and a maximum flow rate of 60 L/min.

Quick Quote：13817145531

*已有【】人联系

Detail

HAWE RC 3 G Cartridge Valve Check Valve, with both ends in tube connection type, features a maximum pressure of 500 bar and a maximum flow rate of 60 L/min. The connection size is G1/2 (A), making it widely applicable in general hydraulic systems and hydraulic preload systems.

The HAWE RC 3 G shut-off valve body is typically designed to be screwed into a threaded hole with a 118° cone-shaped bottom, machined according to standard drilling processes, from either one direction or the opposite direction. This HAWE valve is equipped with a throttling section (such as an orifice) and is designed to ensure that when pressure relief begins and a pressure drop occurs, the flow rate does not exceed the permissible limit.
