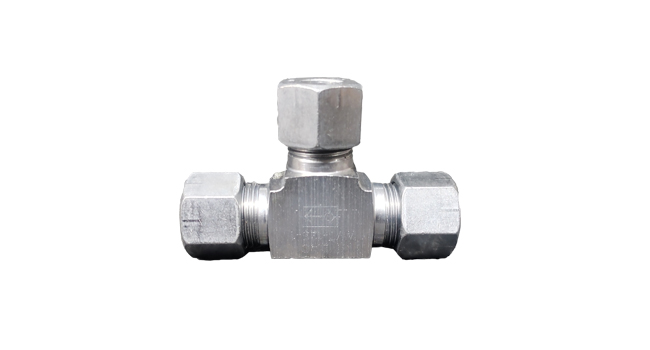

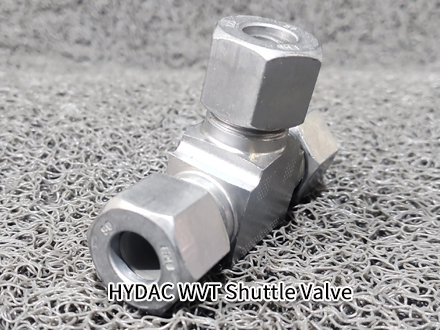

HYDAC WVT-12S-1

HYDAC WVT-12S-1 valve is a spherical poppet valve featuring two inlets (ports P1 and P2) and one outlet (port A).

Quick Quote：13817145531

*已有【】人联系

Detail

HYDAC WVT-12S-1 valve is a spherical poppet valve featuring two inlets (ports P1 and P2) and one outlet (port A). Its operating principle is as follows: the side with the higher pressure from the two inlets pushes the internal closing element (a steel ball), thereby automatically connecting to the common outlet while simultaneously blocking the other inlet with lower pressure. This "select-high" characteristic allows for automatic pressure selection without requiring external control.

In terms of design, the HYDAC WVT-12S-1 is constructed with a high-strength steel valve body and a roller bearing steel ball, making it robust. Its maximum working pressure reaches 350 bar, with a nominal flow rate of 80 liters per minute. The valve can be installed in any orientation, and its exterior features a zinc-plated finish for good environmental adaptability.

Primary Application IndustriesShuttle valves of HYDAC are commonly used in hydraulic systems where there is a need to automatically select the higher pressure from two pressure sources for control or protection purposes. Based on the broad application of HYDAC products in industrial fields and the universal functional characteristics of fluid control components, the WVT-12S-1 Shuttle Valve is suitable for hydraulic control circuits in the following industry systems:

Construction Machinery: Used in pilot control circuits, remote-controlled multi-way valves, etc., to enable pressure selection between different operational signals.

Industrial Manufacturing: Serves as a logic control element or for controlling variable displacement pumps in hydraulic systems for equipment such as in metallurgy and plastic injection molding machines.

Energy and Heavy Equipment: Participates in system pressure monitoring and safety protection within hydraulic and lubrication systems for equipment in wind power, marine, and metallurgical applications.
