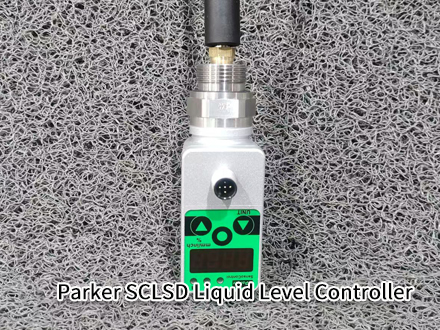

Parker SCLSD-520-10-05

Parker SCLSD-520-10-05 liquid level controller integrates liquid level switching, sensing, and display functions, making it an ideal choice for monitoring tank liquid levels. Parameters can be configured via buttons or a programming module.

Quick Quote：13817145531

*已有【】人联系

Detail

Parker SCLSD-520-10-05 liquid level controller integrates liquid level switching, sensing, and display functions, making it an ideal choice for monitoring tank liquid levels. Parameters can be configured via buttons or a programming module.

Thanks to its convenient switching outputs (such as window and hysteresis modes, ON/OFF) and intelligent setup operations not achievable with mechanical liquid level switches, Parker SCLSD-520-10-05 can replace multiple switches with a single controller. The optional analog signal output enables the controller to easily monitor liquid levels (e.g., for leak detection).

Rich functionality. Each switch output can be individually configured:

• Normally Open/Normally Closed contacts

• Upper and lower liquid level switch points

• Delay time

• Hysteresis/Window function

• Damping

Analog output can be individually configured:

• Switchable 0/4...20 mA

• Adjustable upper level

• Adjustable lower level

Safe and stable. It continuously records even minute changes in float position (≥5 mm) and displays them in millimeters or inches on the screen. Since the liquid level is continuously monitored, the risk associated with the "slow response" of individual mechanical switches is eliminated. This significantly enhances the operational stability of the monitored equipment. Parameters can be password-protected to prevent unauthorized tampering and eliminate unauthorized modifications.
