TokyoKeiki C2G-805-JA

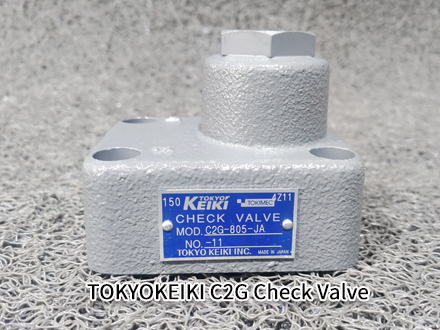

TokyoKeiki C2G-805-JA Right-Angle Type Check Valve (Subplate Mounting) is suitable for petroleum-based hydraulic oils and water-glycol hydraulic fluids.

Quick Quote：13817145531

*已有【】人联系

Detail

TokyoKeiki C2G-805-JA Right-Angle Type Check Valve (Subplate Mounting) is suitable for petroleum-based hydraulic oils and water-glycol hydraulic fluids. It is designated as size 03, with a maximum operating pressure of 21 MPa, a rated flow of 40 L/min, a weight of 1.5 kg, and a cracking pressure of 0.035 MPa.

Precautions for Use:

When installing the S22 (springless) type, ensure the subplate faces downward and is mounted horizontally.

The S12 (with bypass damping) type is equipped with a damper on the poppet. The damper diameters are as follows: φ1.0 for C2G-805 and φ1.2 for other models.

The TokyoKeiki C2G-805-JA Check Valve is specifically designed for hydraulic systems to effectively prevent backflow of the medium, ensuring system stability and safety. It is widely used in marine deck machinery, construction vehicles, injection molding machines, and industrial applications such as iron and steel metallurgy, demonstrating excellent performance in high-pressure, high-reliability, and complex operating conditions.
