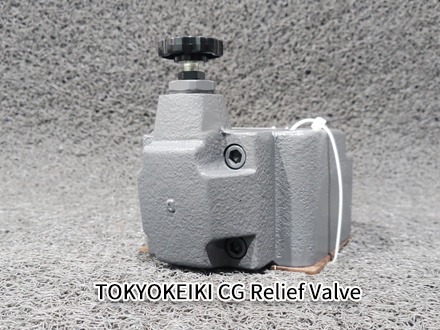

TOKYOKEIKI CG-10-BV-20-JA-J

TOKYOKEIKI CG-10-BV-20-JA-J Relief Valve is suitable for petroleum-based hydraulic oil and water-glycol hydraulic fluid, subplate-mounted type, used as a hydraulic safety valve for machine tools, injection molding machines, and industrial equipment.

Quick Quote：13817145531

*已有【】人联系

Detail

TOKYOKEIKI CG-10-BV-20-JA-J Relief Valve is suitable for petroleum-based hydraulic oil and water-glycol hydraulic fluid, subplate-mounted type, used as a hydraulic safety valve for machine tools, injection molding machines, and industrial equipment.

Precautions for Use

● When the pressure in the tank circuit is high or fluctuates significantly, use the external drain type (Y) and connect the drain line directly to the tank. During piping, ensure the end of the tubing is submerged below the oil level.

● To improve the response speed from unloading to loading, use the high-pressure discharge type (V).

● When setting the pressure, pay close attention to the flow-pressure characteristics.

● To include a pressure adjustment handle, add S81 after the design number.

● Loosen the locking nut, turn the handle clockwise to increase pressure and counterclockwise to decrease pressure.
