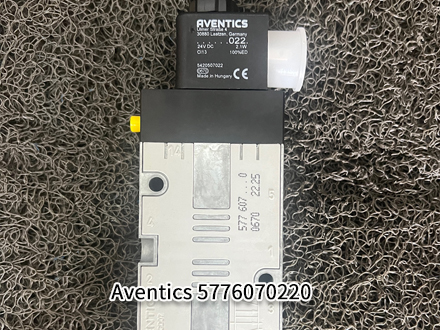

Aventics 5776070220 Directional Control Valve

Aventics 5776070220 directional control valve is a high-performance solenoid-operated directional valve, serving as a critical component in the company's industrial automation product line. This Aventics of SHDNK model employs advanced solenoid actuation technology, specifically designed for industrial applications demanding high reliability, rapid response, and precise control.

Structural Features

Solenoid Actuation System: Utilizes an energy-efficient solenoid coil with low power consumption (typical power draw: 4.5W), featuring an integrated overvoltage protection circuit.

Spool Design: Precision-machined spool structure with specially hardened surface treatment to ensure long-term leak-free operation.

Guide Mechanism: Incorporates low-friction guide sleeves to reduce spool movement resistance and enhance response speed.

Manual Override: Equipped with an emergency manual override button for valve position switching during power outages.

Connection Method: Standard subplate mounting for easy integration into pneumatic systems.

Operating Principle

The 5776070220 directional control valve operates on the principle of direct solenoid-driven spool movement. When the solenoid coil is energized, the generated electromagnetic force overcomes spring resistance and fluid pressure to shift the spool, altering the airflow path. Upon de-energization, the spring force returns the spool to its original position. The valve adopts a "pilot-operated" design, enabling low-power solenoid control of high-flow main spool switching.

Application Fields

This directional control valve is widely used in the following industrial sectors:

Automated production line control

Packaging machinery

Material handling equipment

Machine tool control

Printing machinery

Rubber and plastics machinery

Food and beverage processing equipment
