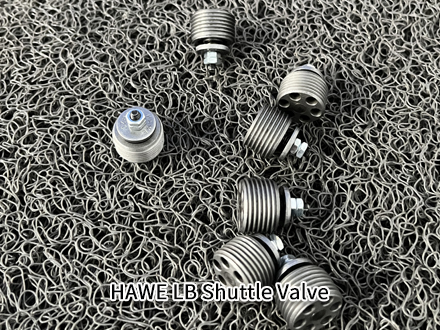

HAWE LB 2 C-40 Line Rupture Safety Valves LB Shuttle Valve

The line rupture protection valve HAWE LB 2 C-40 offers a high level of safety in the event of pressure peaks. It features reproducibly accurate and secure closing HAWE at the pre-set trigger flow rate. Higher flow rates cause a plate raised from the valve seat by a spring to be pressed onto the housing seat by the flow forces and cause the valve to close. A variant with orifice bore in the valve plate permits a low flow rate in the locking direction. Type LB is available as a screw-in cartridge in a housing version for in-line installation, or as a screw fitting version.

Features and advantages:

Operating pressures up to 500 bar

Reduction in screw fittings in the case of E-version

Maintenance free:

Pre-adjusted valves available

Different sizes and designs available

Intended applications

Industrial vehicles

Lifting devices
