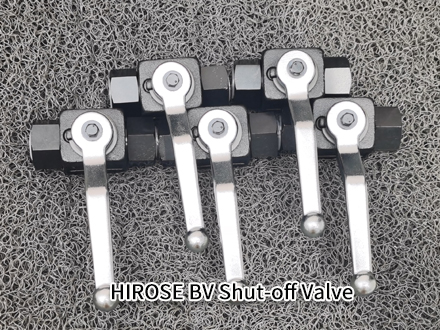

HIROSE HBV-T02-0832 Shut-off Valve

HIROSE HBV-T02-0832 Two-Position Three-Port Ball Valve has a maximum working pressure of 15 MPa. The pipeline connection method is threaded connection - plate-type connection. The purpose of the HIROSE HBV series ball valve is to open or close hydraulic pipelines, utilizing a precision-machined ball and resin seat to completely cut off fluid flow.

The Japan HIROSE HBV-T series shut-off valve employs a single-handle operation method (90 degrees) with a lever-type handle to achieve opening or closing.

Thanks to the lever-type handle, it is easy to confirm the open or closed status, and compared to conventional shut-off valves, it significantly reduces flow resistance.

This Japan HIROSE ball valve can be used as a two-way or three-way manual switching valve.
