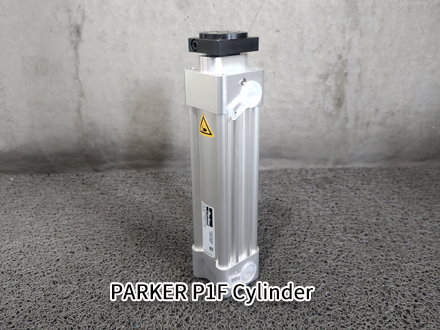

PARKER P1F-R040FSA0100-0000 Double Piston Rod Cylinder

Parker P1F-R040FSA0100-0000 Double Piston Rod Cylinder. The Parker P1F-R040FSA0100-0000 cylinder features a smooth profile design. The mutual coordination of the two piston rods enables the cylinder to withstand eccentric forces on the cylinder axis. The non-rotating double piston rod series is primarily used for specific applications where the piston cannot rotate.

The PARKER P1F series cylinders have bore sizes ranging from 32 mm to 100 mm, a smooth profile, adjustable pneumatic cushioning, and a magnetic piston. The standard operating temperature range is -20°C to +80°C. Two series are available:

P1F-R series: Double-acting, single/double rod (only one double rod on one side).

P1F-Q series: Double-acting, through double rod (double rods on both sides).

Markets:

• Factory Automation

• Machine Tools

• Packaging Machinery

• Vehicle Assembly Facilities

• Material Handling

Applications:

General Industry – Linear Motion

• Pushing objects

• Stopping/holding/moving

General Industry – Clamping

• Clamping objects

• Fixing / Holding position

General Industry – Holding

• Lifting, moving, clamping

General Industry – Control

• Changing channels, direction

• Changing levels

Packaging – Movement

• Pushing/pulling objects

• Sorting, conveying
