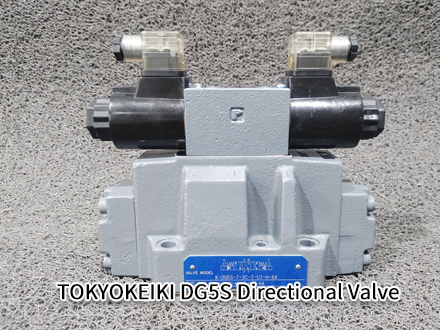

TokyoKeiki K-DG5S-7-3C-T-U7-H-84 Electro-Hydraulic Pilot Operated Directional Valve

TokyoKeiki K-DG5S-7-3C-T-U7-H-84 Electro-Hydraulic Pilot Operated Directional Valve (Subplate Mounting Type), maximum flow rate: 600 l/min, wet-type solenoid core, spring centering method: spring-centered type (3-position, double solenoid), solenoid mounting direction: standard (energized position P-B, A-T), without pilot throttle valve, internal pilot type, drain type: internal drain type, electrical wiring method: solenoid connector with junction box, G1/2; with indicator light and surge suppressor.

For internal drain types, the pilot pressure (P port pressure for internal pilot types) TokyoKeiki K-DG5S-7-3C-T-U7-H-84 must be higher than the sum of "minimum pilot pressure + tank line back pressure." Therefore, even if surge pressure occurs in the tank line, it must be used while consistently maintaining this differential pressure.

If the minimum pilot pressure can be maintained, switching can be performed by pressing the manual override button of the pilot solenoid valve. For internal drain types, please note that the operating force will increase if the tank line back pressure is high.
