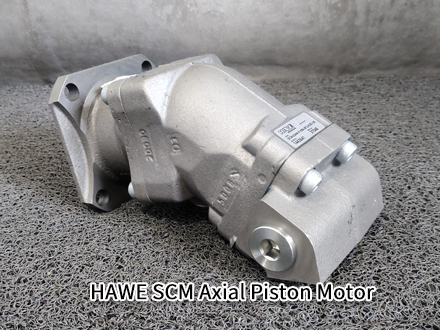

HAWE SCM-012W-P-SB4-B25-S3U-100 Piston Motor

HAWE SCM-012W-P-SB4-B25-S3U-100 piston motor is a high-performance drive core engineered for mobile hydraulic applications. Featuring distinctive construction and robust quality, it stands as a premium solution for high-pressure power transmission in confined installation spaces.

HAWE SCM series motors adopt a bent-axis spherical piston design with streamlined moving components. It delivers smooth torque across the full speed range with minimal flow pulsation and low operational noise, making it suitable for light-load power applications including closed-loop travel drives, compact slewing mechanisms and winch systems. Equipped with an integrated S3U protection valve manifold, it delivers dual overload protection and charge oil compensation, eliminating the need for external valve assemblies, streamlining circuit layout and cutting overall system costs.

HAWE SCM-012W-P-SB4-B25-S3U-100 hydraulic motor is fitted with heavy-duty tapered roller bearings capable of enduring continuous shock loads. Combined with an all-steel housing and double-layer shaft seals, it boasts outstanding durability against harsh outdoor conditions such as mud, water and dust. It delivers balanced bidirectional rotation, with consistent torque and efficiency in both forward and reverse operation to accommodate diverse working conditions. Its modular structure allows individual replacement of key components including pistons and valve plates for simplified maintenance. It is widely deployed on compact construction machinery, agricultural and forestry equipment, sanitation vehicles and hydraulic test benches.
